SP10-350/500/700ILT
Reliable Technical Data
  • Input Voltage Range: 220-240VAC
  • Input Frequency:50Hz/60Hz
  • Output Power:10W
  • Body:PC
  • Short Circuit;Over Load;Open Circuit

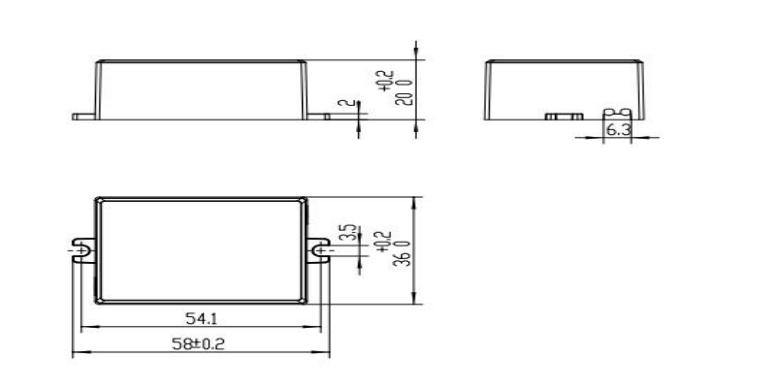

Dimension in mm



Input Voltage Range: AC220-240V 50/60Hz {power factor measured at AC230V and full load}



Model No. Constant Output current Load Output voltage range PF Ta Tc L*W*H
SP10-350ILT 350mA 5-10W 14-29V ≥0.9 60℃ 90℃ 58*36*20
SP10-500ILT 500mA 5-10W 10-20V ≥0.9 60℃ 90℃ 58*36*20
SP10-700ILT 700mA 6.5-10W 9-15V ≥0.9 60℃ 90℃ 58*36*20
